Keyway flexible set screw / clamp shaft coupling TLK11

Keyway type flexible coupling TLK11 includes keyway type coupling (single plate springs) and keyway type coupling (double plate springs). Body material is steel.

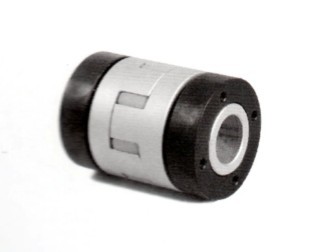

curved jaw

Keyway type shaft coupling (single plate springs) keeps following features: 1. using keyway connect, plate spring coupling;2. zero backlash; 3.excellent response and high torque capacity; 3. identical clockwise and anticlockwise rotational characteristics; 4 Stainless steel plate springs absorb parallel, angular misalignments and shaft end-play; 5. for servomotor, step-motor connect.

Keyway type shaft coupling (double springs) keeps following features: 1. using keyway connect, plate spring coupling;2. zero backlash; 3.excellent response and high torque capacity; 3. identical clockwise and anticlockwise rotational characteristics; 4inless steel plate springs absorb parallel, angular misalignments and shaft end-play; 5. for servomotor, step-motor connect.

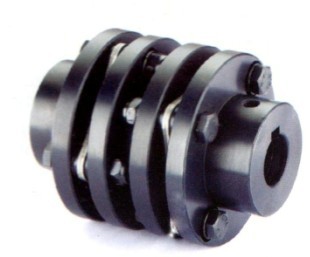

double plates and keyway type

 Encode coupling TLK12 keeps following features: polyester resin with glass fibers and for encode.

Miniature rigid coupling TLK13 includes setscrew type(rigid) and clamp type (rigid).

Setscrew type (rigid) keeps following features: light weight, available in aluminum alloy and stainless steel and setscrew type.

Clamp type keeps following features: light weight, extremely low inertia and high response, available in aluminum alloy and stainless steel and clamp type.
